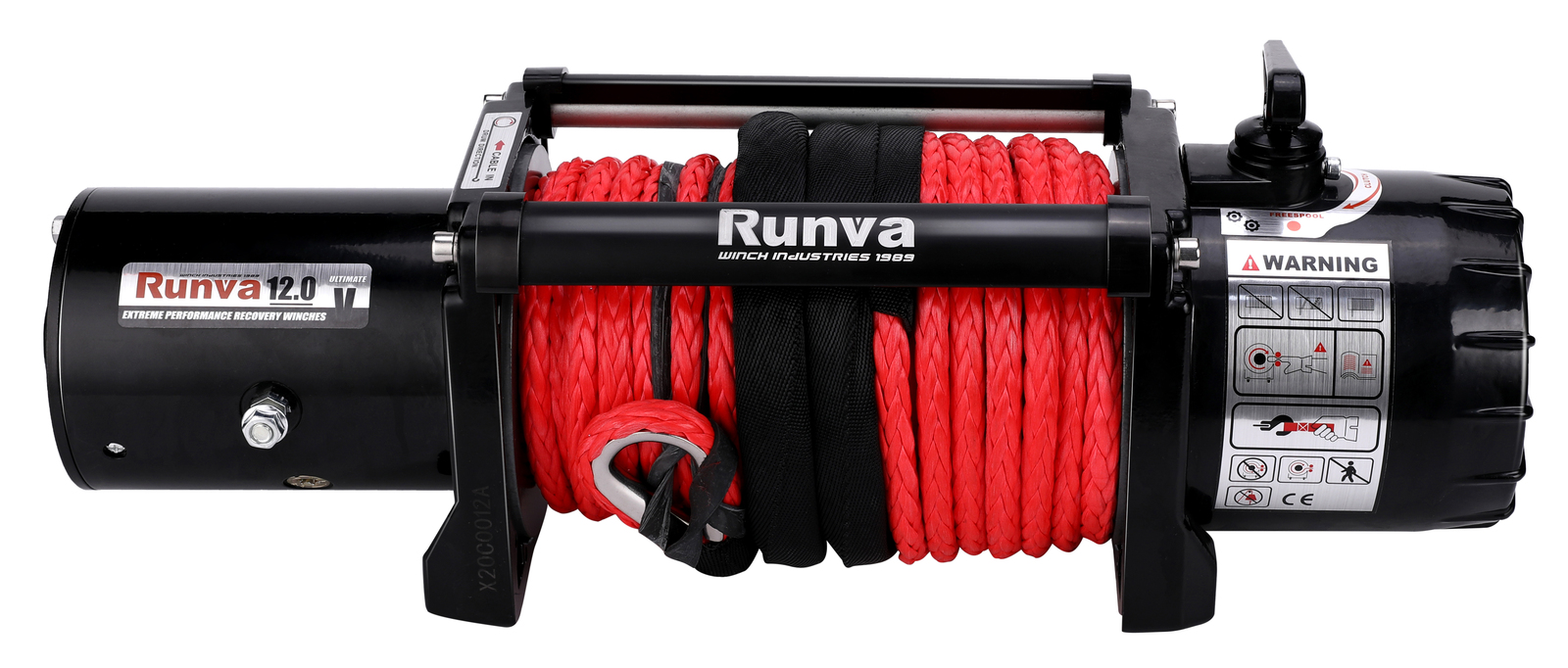

Runva EWV12000 ULTIMATE 24V with Synthetic Rope
$989.00
In Stock
More info
- 12,000LB LINE PULL CAPACITY
- IP67 INGRESS PROTECTED
- RATCHET STYLE BRAKE IN GEARBOX
- AVAILABLE IN 12V AND 24V
- STEEL CABLE OPTION AVAILABLE
SKU : EWV1200024VD
The Runva EWV12000 Ultimate is the perfect all-round winch and features the same key benefits of our Premium Series(IP67 Ingress Protection + Ratchet Style Brake). If you are looking for massive line pull capacity but limited on space – this is the winch for you.
RATED LINE PULL12,000LB (5,443KG)
MOTOR(12V) 4.0KW/5.4HP; (24V) 6.5KW/8.7HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO253:1
CLUTCH TYPESLIDING RING GEAR
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMAUTOMATIC RATCHET LOAD HOLDING IN THE GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZESTEEL CABLE: 11MM X 25M
DRUM SIZE63MM X 223MM
MOUNTING BOLT PATTERN254MM x 114.3MM
OVERALL DIMENSIONS553MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
sku EWV1200024VD
Shipping Weight 32.50kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m
RUNVA EWV12000 ULTIMATE
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
| LINE PULL lb (kg) | LINE SPEED ft/min (m/min) | MOTOR CURRENT amp | ||
|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | |
| 0 | 29.5 (9.0) | 36 (11.0) | 60 | 45 |
| 3000 (1361) | 13.1 (4.0) | 14.8 (4.5) | 150 | 90 |
| 5000 (2268) | 11.5 (3.5) | 12.5 (3.8) | 200 | 120 |
| 9000 (4082) | 6.2 (1.9) | 9.5 (2.9) | 310 | 190 |
| 12000 (5443) | 4.9 (1.5) | 7.9 (2.4) | 380 | 250 |
| LAYER OF CABLE | RATED LINE PULL lb (kg) | TOTAL ROPE ON DRUM ft(m) |
|---|---|---|
| 1 | 12000 (5443) | 16.1 (4.9) |
| 2 | 9563 (4338) | 36.4 (11.1) |
| 3 | 7948 (3605) | 60.0 (18.3) |
| 4 | 6800 (3084) | 83.7 (25.0) |
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
