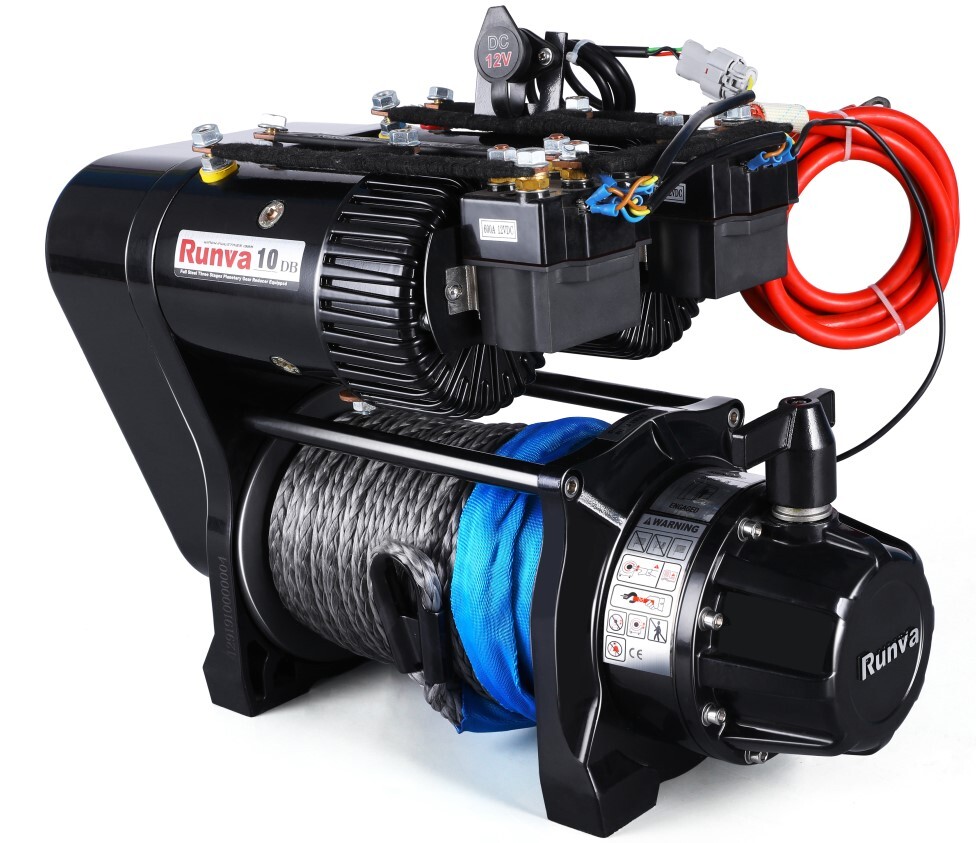

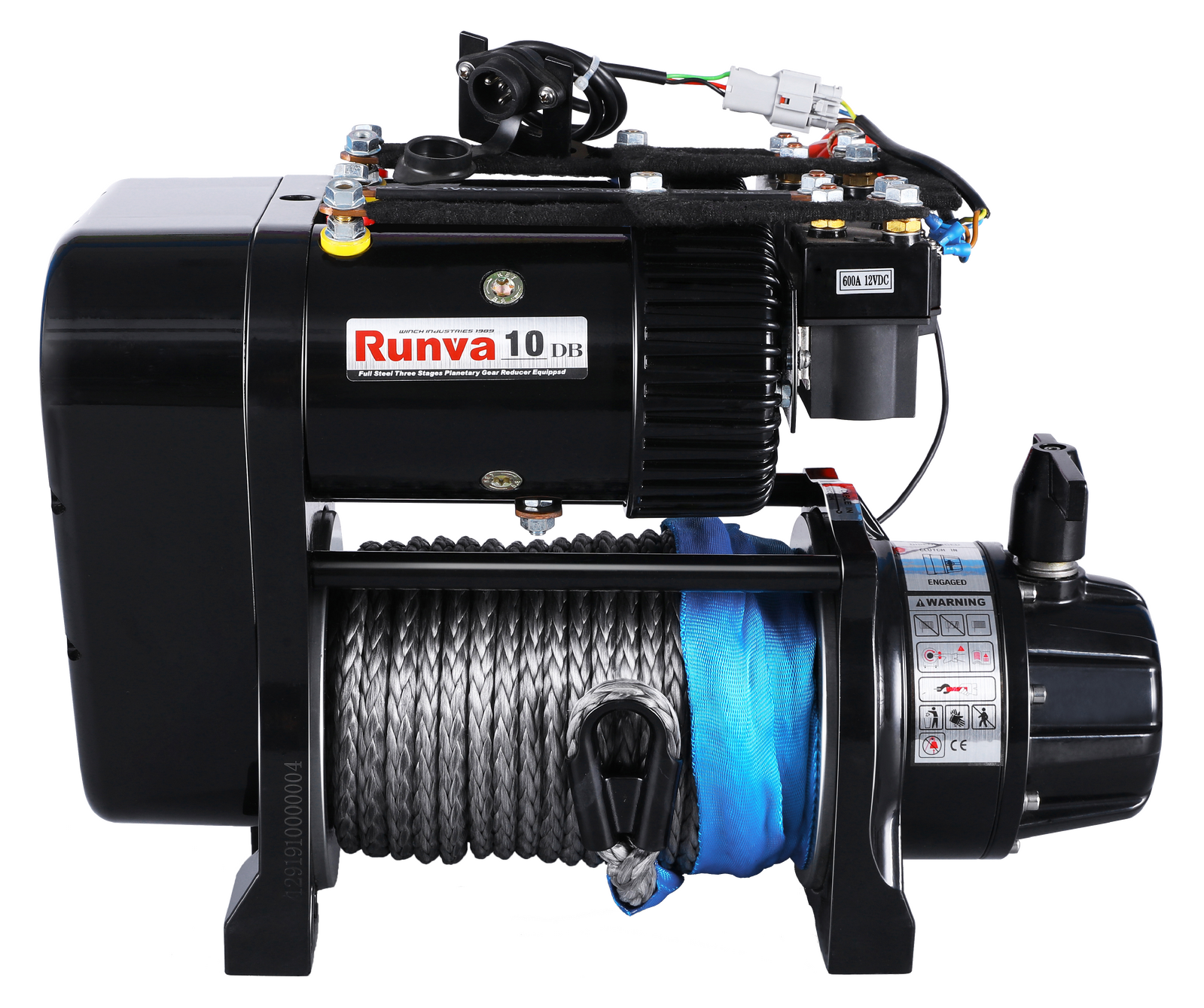

The Runva EWS10000 Premium is our twin motor low mount competition spec winch. (Different to a high mount winch). Featuring a massive 10,000lb of line pull from two powerful and reliable 7.2HP motors. This winch has a huge amount of torque. The gearbox is a three stage planetary setup with low 108:1 gear ratio for fast line speeds.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWS10000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.
This model is the ideal choice for recreational or competition use. The EWS10000 Premium will not bolt straight into a standard 4X4 Winch Bar/Bullbar. This winch does require a large supply of power to run it effectively. We recommend a battery of around 1000CCA minimum, along with upgraded power leads of around 70mm2 minimum.
|LINE PULL lb (kg)||LINE SPEED ft/min (m/min)||MOTOR CURRENT (amp)||LAYER OF CABLE||RATED LINE PULL lb (kg)||TOTAL ROPE ON DRUM ft (m)|
|12V DC||24V DC||12V DC||24V DC|
|0||50.2 (15.3)||57.4 (17.5)||150||98||1||10,000 (4,536)||18.4 (5.6)|
|4,000 (1,816)||22.3 (6.8)||27.2 (8.3)||420||230||2||8,000 (3,629)||41.3 (12.6)|
|6,000 (3,629)||18.7 (5.7)||23.3 (7.1)||580||340||3||6,700 (3,039)||65.6 (20.0)|
|8,000 (3,629)||15.7 (4.8)||19.0 (5.8)||700||420||4||5,747 (2,607)||85.3 (26.0)|
|10,000 (4,536)||12.8 (3.9)||14.8 (4.5)||860||490|
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
