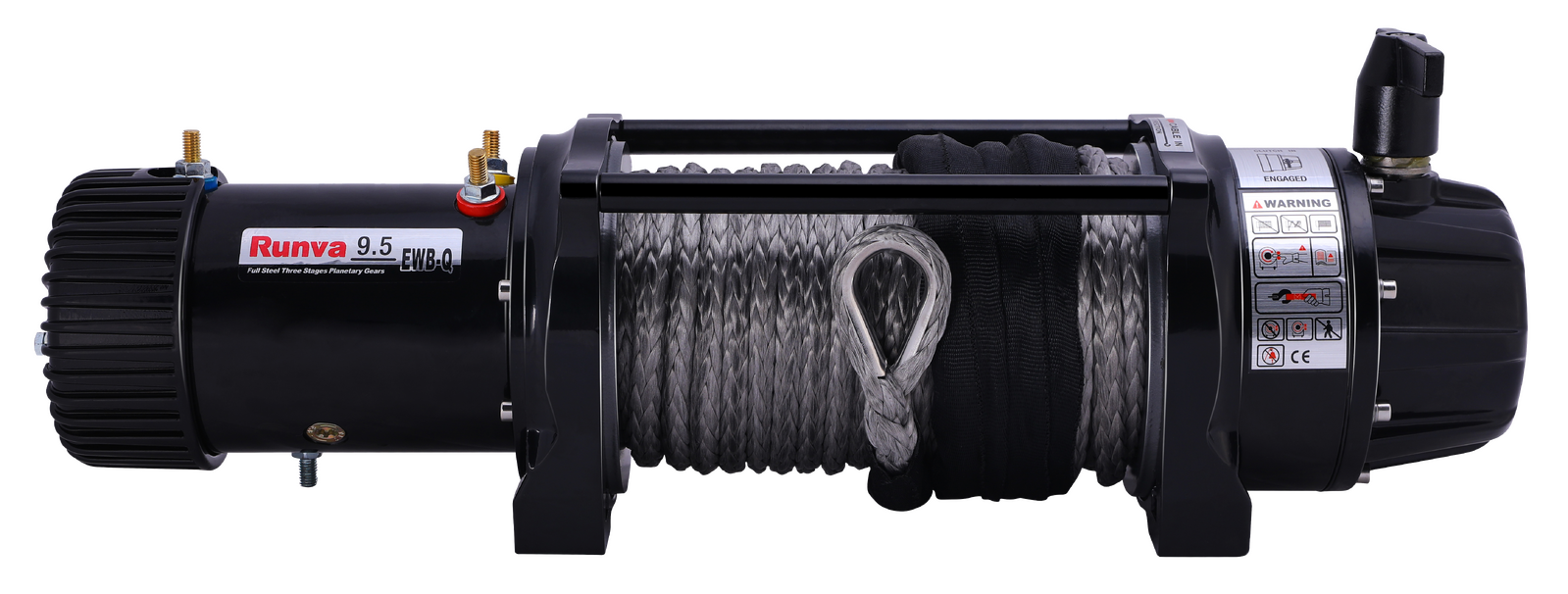

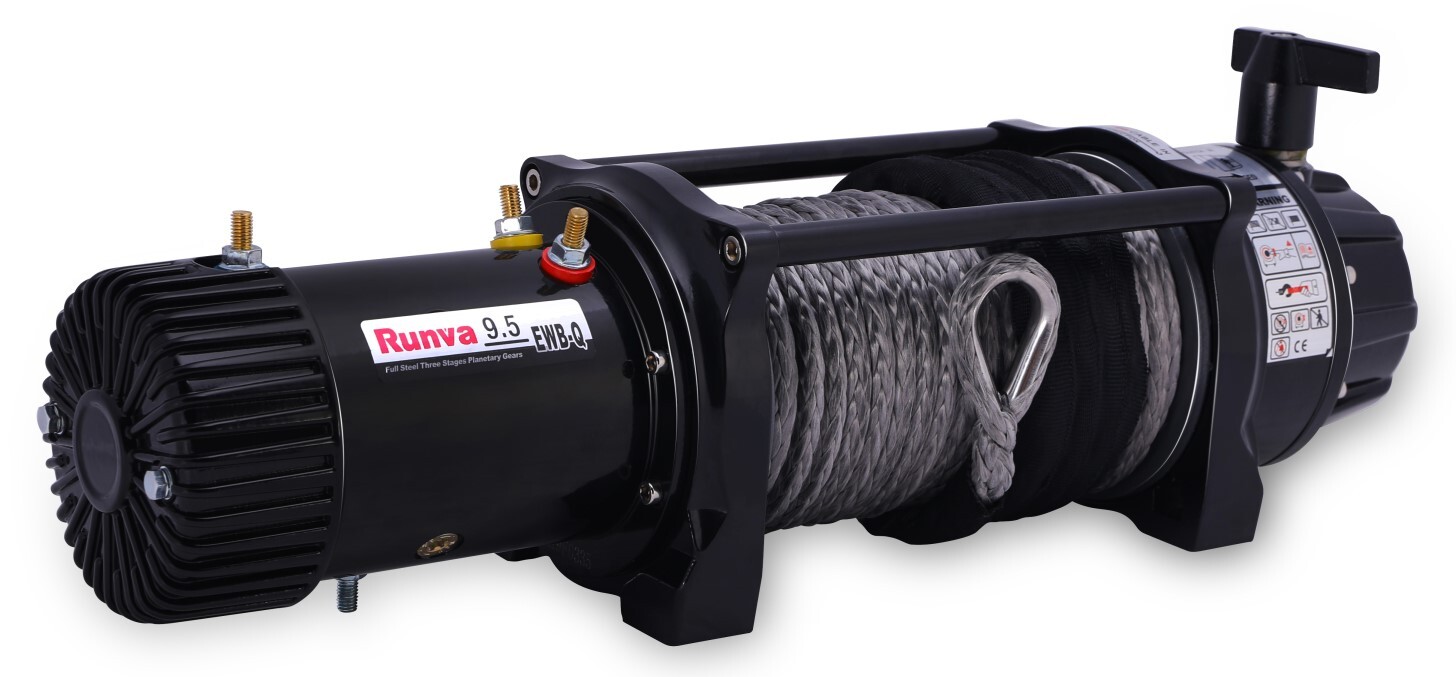

Runva EWB9500-Q PREMIUM EVO 12V with Synthetic Rope

$1,275.00


  • 9,500LB LINE PULL CAPACITY
  • LATEST MODEL PREMIUM EVO EDITION
  • NOW WITH OUR LATEST 3-STAGE CLUTCH WITH SUPER EASY FREESPOOL
  • FAST LINE SPEED - COMPETITION SPEC
  • SUPER LOW 80:1 GEAR RATIO
  • POWERFUL 7.2HP MOTOR
  • IP67 INGRESS PROTECTED
  • RATCHET BRAKE IN GEARBOX
  • THIS MODEL REQUIRES A DIFFERENT AIR CLUTCH TO OUR STANDARD PREMIUM AIRCLUTCH - SKU: AIRCLUTCH3S

The Runva EWB9500-Q Premium EVO is our latest creation. If you want all the industry leading Premium features PLUS fast line speed - this is the one for you. Others will be left with envy as you winch out of that mud hole at nearly twice the speed. This model now also features our very latest clutch system. Now you can pull the rope out by hand without any resistance making recoveries quicker and hassle free!

Ideal for a small to medium sized vehicle that demands a fast and reliable winch (or other application). With 9,500lb of line pull, we achieved the speed thanks to the large 7.2HP motor and incredibly low 80:1 gear ratio.  This winch has all of our Premium features built in as standard.

Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out. The EWB9500-Q is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.


Please check the technical drawing below for sizing and compatibility with your setup.  We recommend the use of a 1000CCA battery and upgraded power leads to 70mm2. By doing this you will achieve even faster line speeds than what is shown in our performance table. This winch has been tested in competition under constant strain.

RATED LINE PULL9,500LB (4,309KG)
MOTOR(12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO80:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE10MM X 25M
DRUM SIZE63MM X 216MM
MOUNTING BOLT PATTERN254MM X 114.3MM
OVERALL DIMENSIONS612MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
sku EWB9500QEVO12VD
Shipping Weight 37.50kg
Shipping Width 0.630m
Shipping Height 0.330m
Shipping Length 0.330m
dimensions
LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
  12V DC 24V DC 12V DC 24V DC
0 65.6 (20.0) 70.5 (21.5) 53 35 1 9,500 (4,309) 17.4 (5.3)
3,000 (1,361) 19.7 (6.0) 23.0 (7.0) 220 170 2 7,706 (3,495) 39.4 (12.0)
6,000 (2,722) 12.8 (3.9) 15.7 (4.8) 405 300 3 6,482 (2,940) 65.0 (19.8)
9,500 (4,309) 8.2 (2.5) 10.2 (3.1) 580 380 4 5,593 (2,537) 85.3 (26.0)

(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
