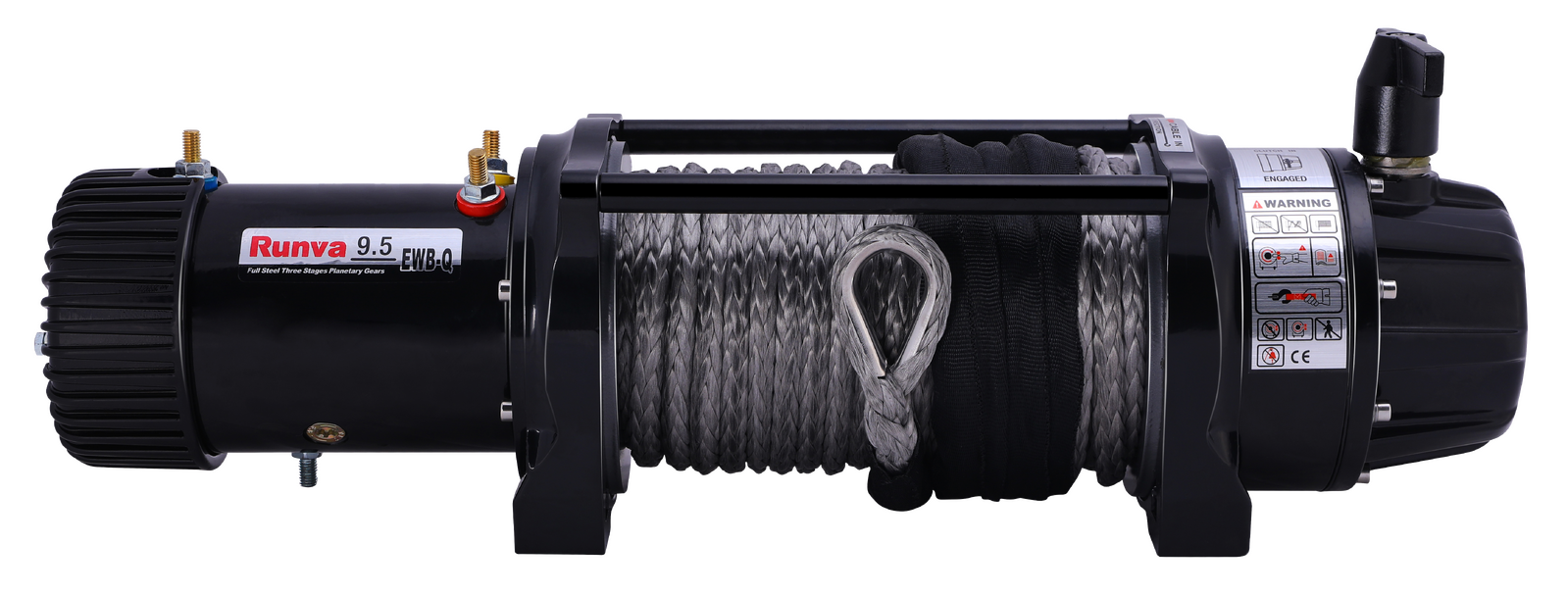

Runva EWB9500-Q PREMIUM 24V with Synthetic Rope

$1,025.00


  • 9,500LB LINE PULL CAPACITY
  • LOW GEAR RATIO - FAST LINE SPEED
  • IP67 INGRESS PROTECTED
  • RATCHET BRAKE IN GEARBOX
  • AVAILABLE IN 12V AND 24V
  • AIR FREESPOOL CLUTCH AVAILABLE

The Runva EWB9500-Q Premium is perfect if you are needing faster line speed for a small to medium sized vehicle (or other applicaion). With 9,500lb of line pull, this winch is designed for fast line speed thanks to the large 7.2HP motor and low 108:1 gear ratio.


This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB9500-Q is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. Please check the technical drawing below for sizing and compatibility with your setup.

RATED LINE PULL9,500LB (4,309KG)
MOTOR(12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO108:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE10MM X 25M
DRUM SIZE63MM X 216MM
MOUNTING BOLT PATTERN254MM X 114.3MM
OVERALL DIMENSIONS612MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
sku EWB9500Q24VD
Shipping Weight 39.00kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m
dimensions
LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
  12V DC 24V DC 12V DC 24V DC
0 42.7 (17.0) 63.3 (19.3) 51 28 1 9,500 (4,309) 17.4 (5.3)
3,000 (1,361) 18.7 (5.7) 21.6 (6.6) 220 130 2 7,706 (3,495) 39.4 (12.0)
6,000 (2,722) 12.1 (3.7) 14.4 (4.4) 365 230 3 6,482 (2,940) 65.0 (19.8)
9,500 (4,309) 7.2 (2.2) 8.9 (2.7) 530 320 4 5,593 (2,537) 85.3 (26.0)

(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
