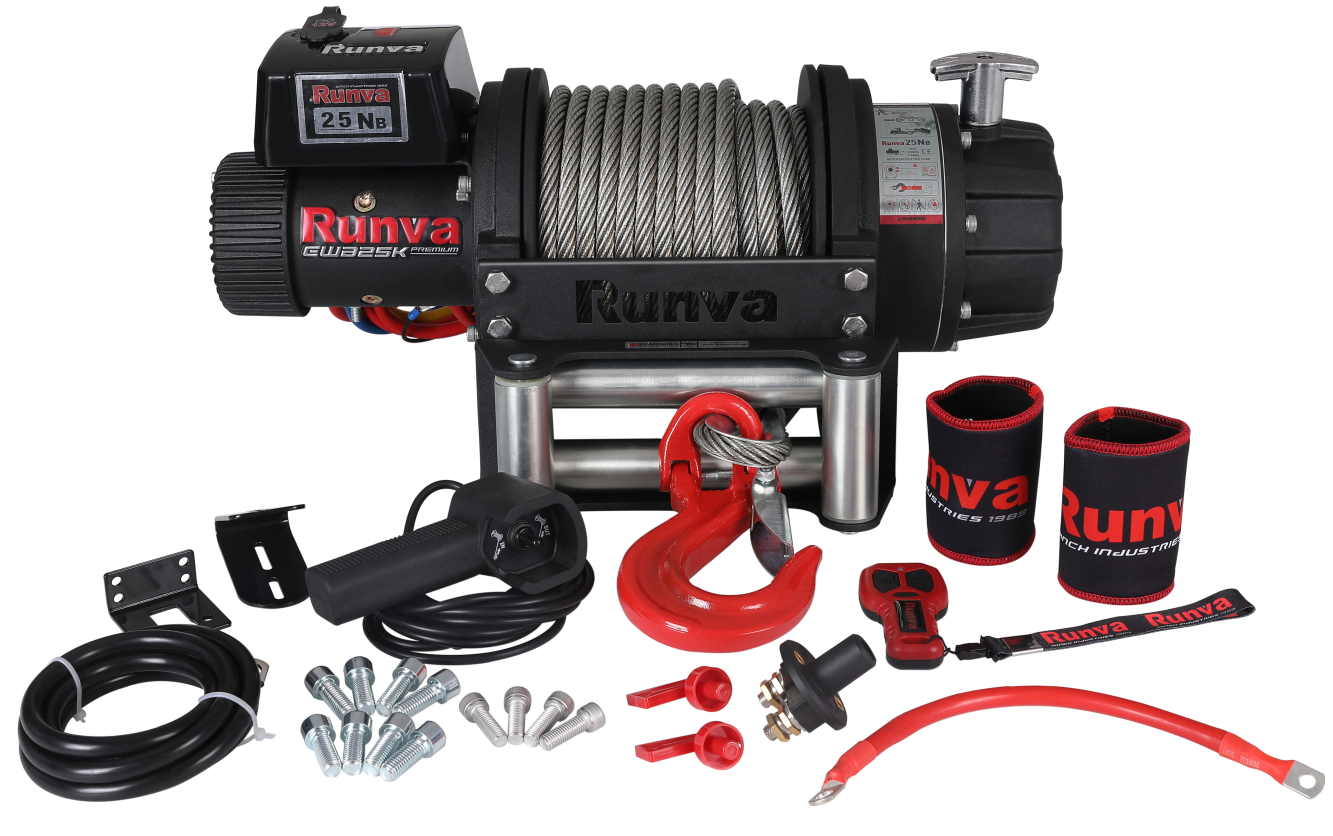

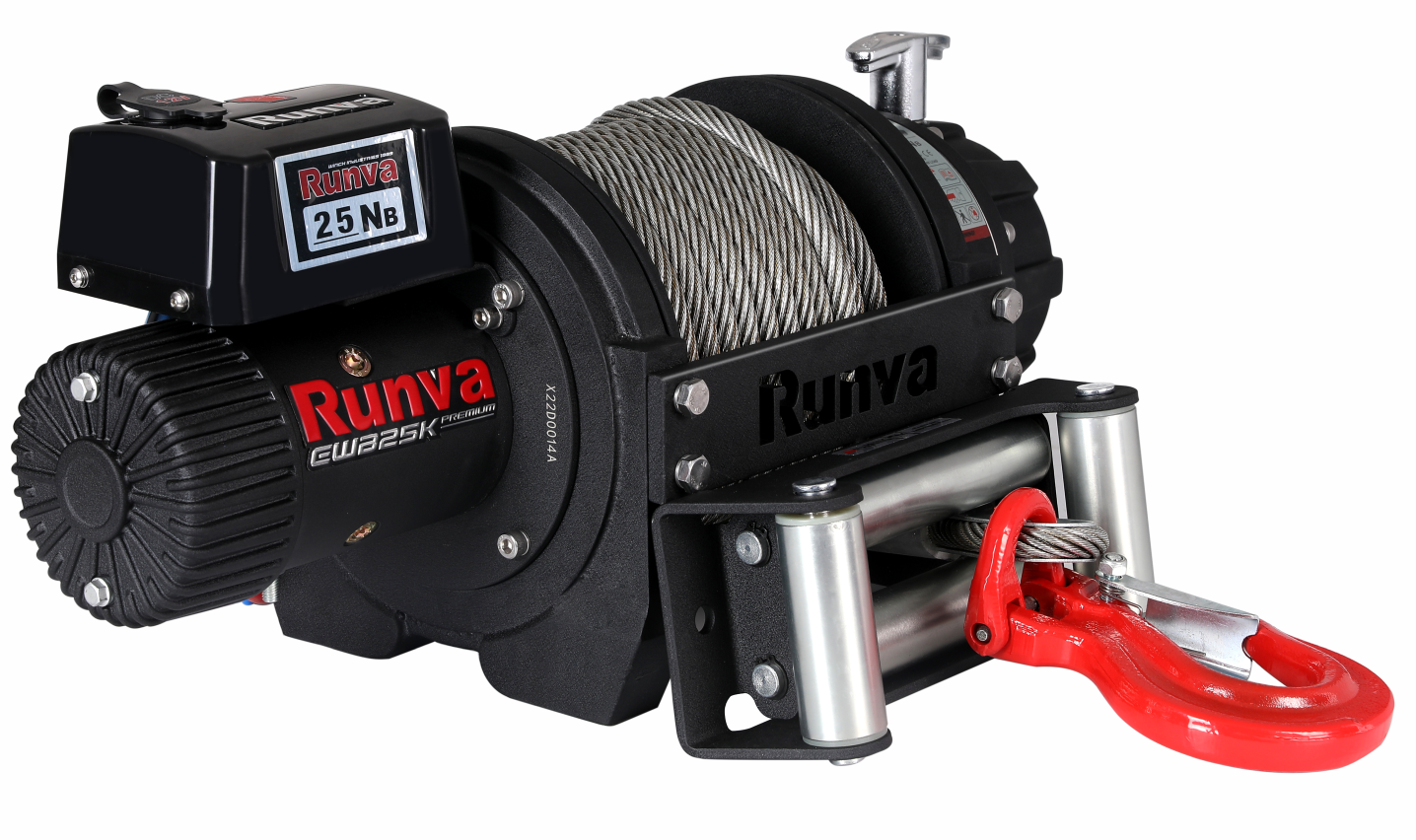

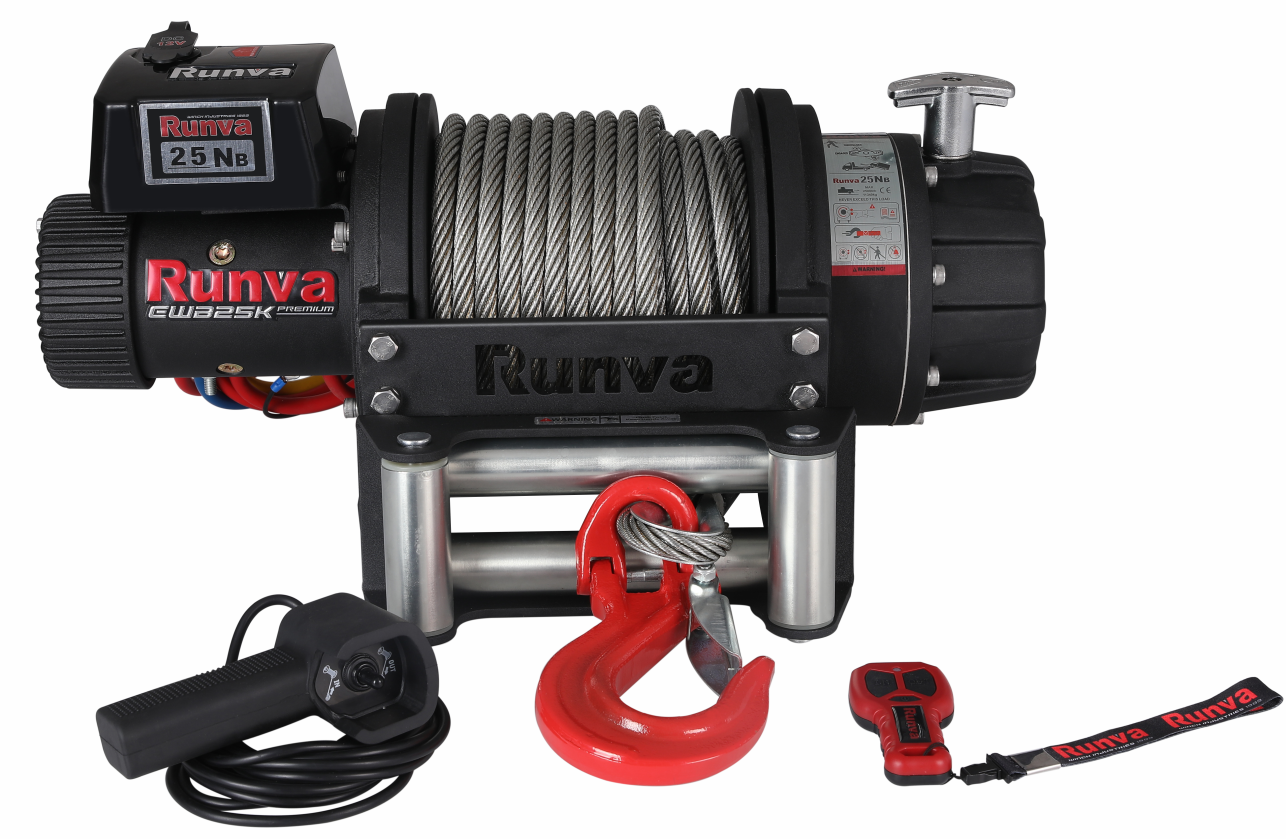

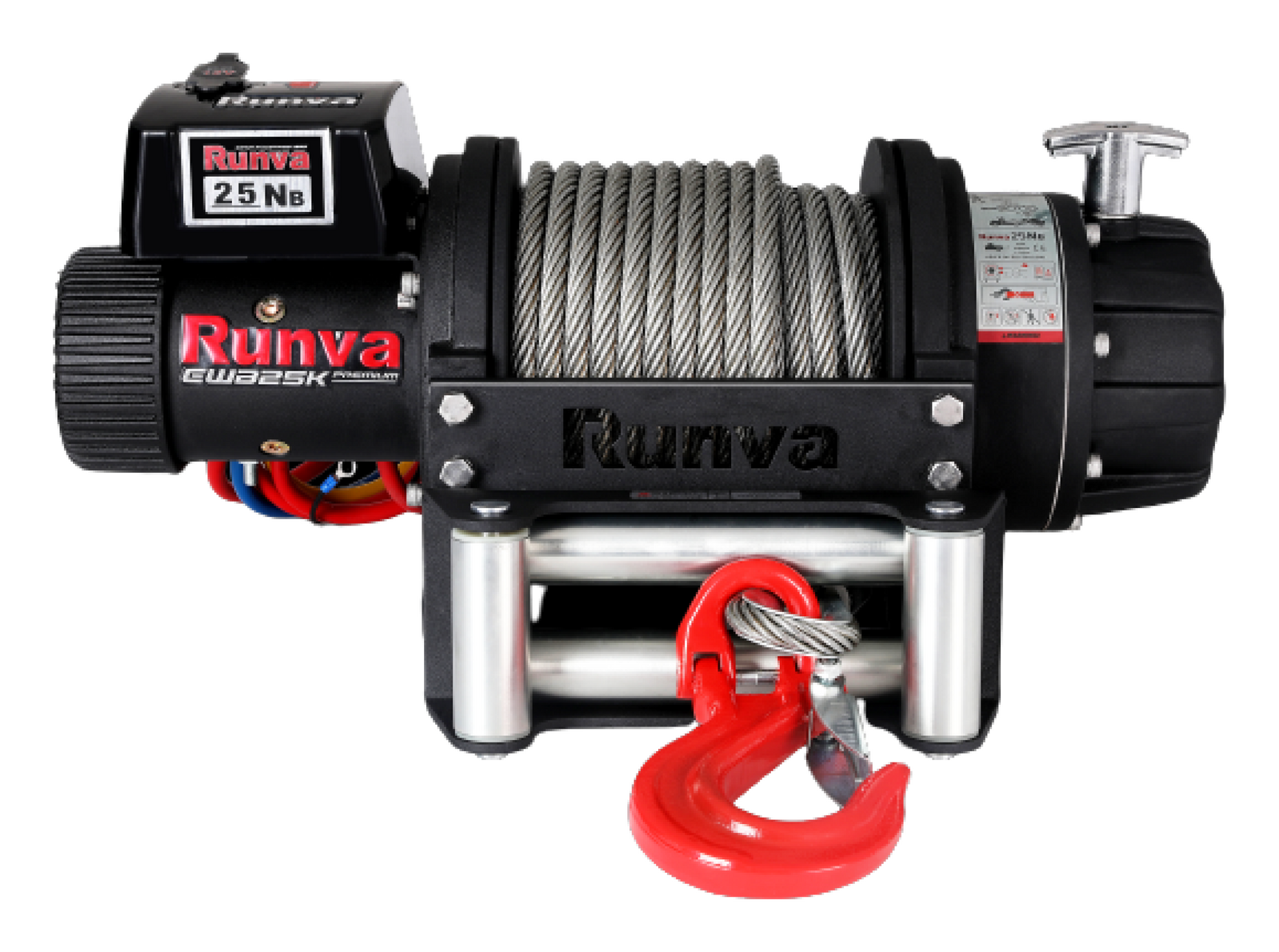

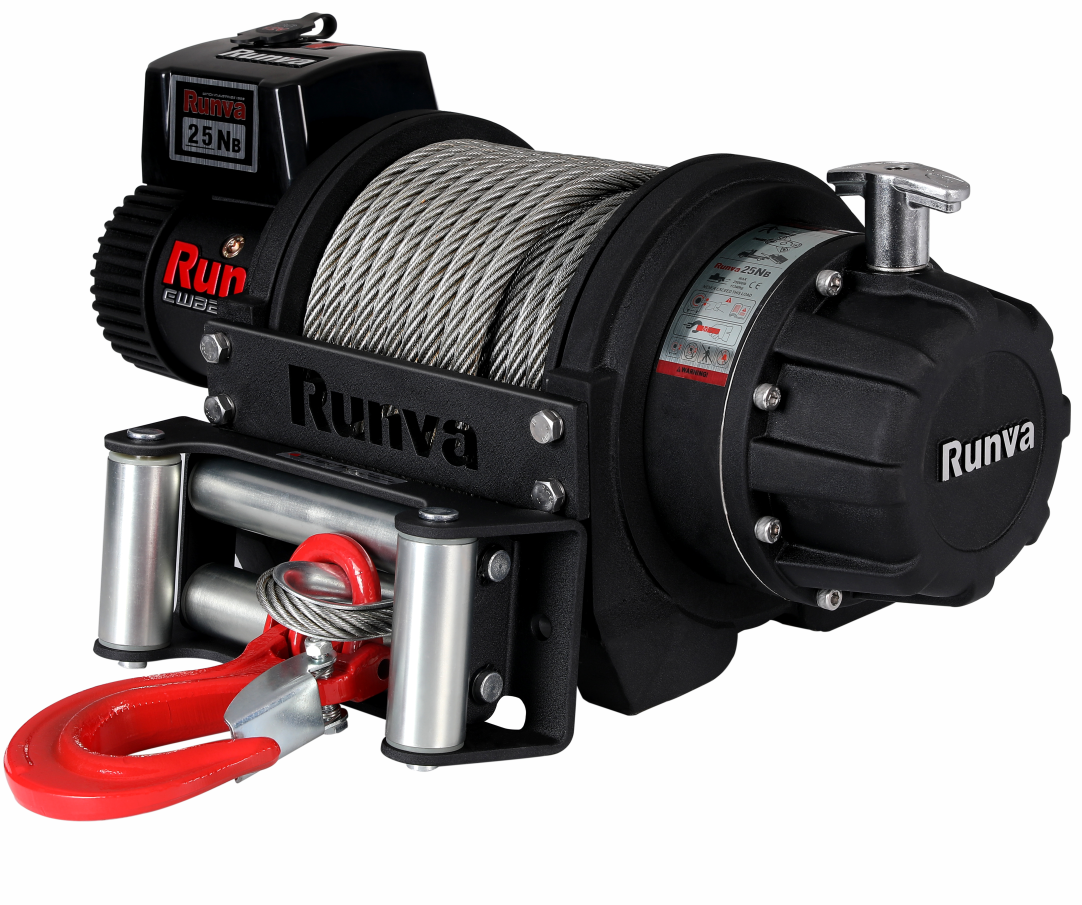

Runva EWB25000 Premium 24V with Steel Cable

$2,250.00


  • MASSIVE 25,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • RATCHET STYLE BRAKE IN GEARBOX
  • EXTREME DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
  • AVAILABLE IN 12V AND 24V
  • SYNTHETIC ROPE OPTION AVAILABLE
  • AIR FREESPOOL CLUTCH AVAILABLE
  • ONE SERIOUSLY STRONG WINCH

The Runva EWB25000 Premium is our biggest electric winch with a MASSIVE 25,000LB line pull. If you need a commercial grade product winch some SERIOUS pulling power – look no further. For a winch that will work in even the most difficult and heavy recoveries, Runva is the brand of choice.



Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 450:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of up to 9.3M/Min*, this winch will get the job done in no time





This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.





The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB25000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.





If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB25000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications. (+ many other applications)



RATED LINE PULL25,000LB (11,340KG)
MOTOR(12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO450:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPEAIRCRAFT GRADE STEEL CABLE
CABLE SIZE13.8MM X 26.5M
DRUM SIZE120MM X 198MM
MOUNTING BOLT PATTERN254MM X 114.3MM; 254MM X 190.5MM
(8X M12 BOLTS)
OVERALL DIMENSIONS638MM X 298MM X 300MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHMATT BLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
sku EWB2500024VS
Shipping Weight 120.00kg
Shipping Width 0.410m
Shipping Height 0.450m
Shipping Length 0.740m
dimensions
LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
  12V DC 24V DC 12V DC 24V DC
0   30.5 (9.3)   23 1 25,000 (11,340) 17.8 (5.4)
5,000 (2,268)   11.1 (3.4)   90 2 20,724 (9,400) 39.4 (12.0)
10,000 (4,538)   8.2 (2.5)   140 3 17,698 (8,027) 64.3 (19.7)
15,000 (6,804)   6.6 (2.0)   180 4 15,443 (7,005) 86.9 (26.5)
20,000 (9,072)   5.2(1.6)   230
25,000 (11,340)   3.9 (1.2)   280

(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
