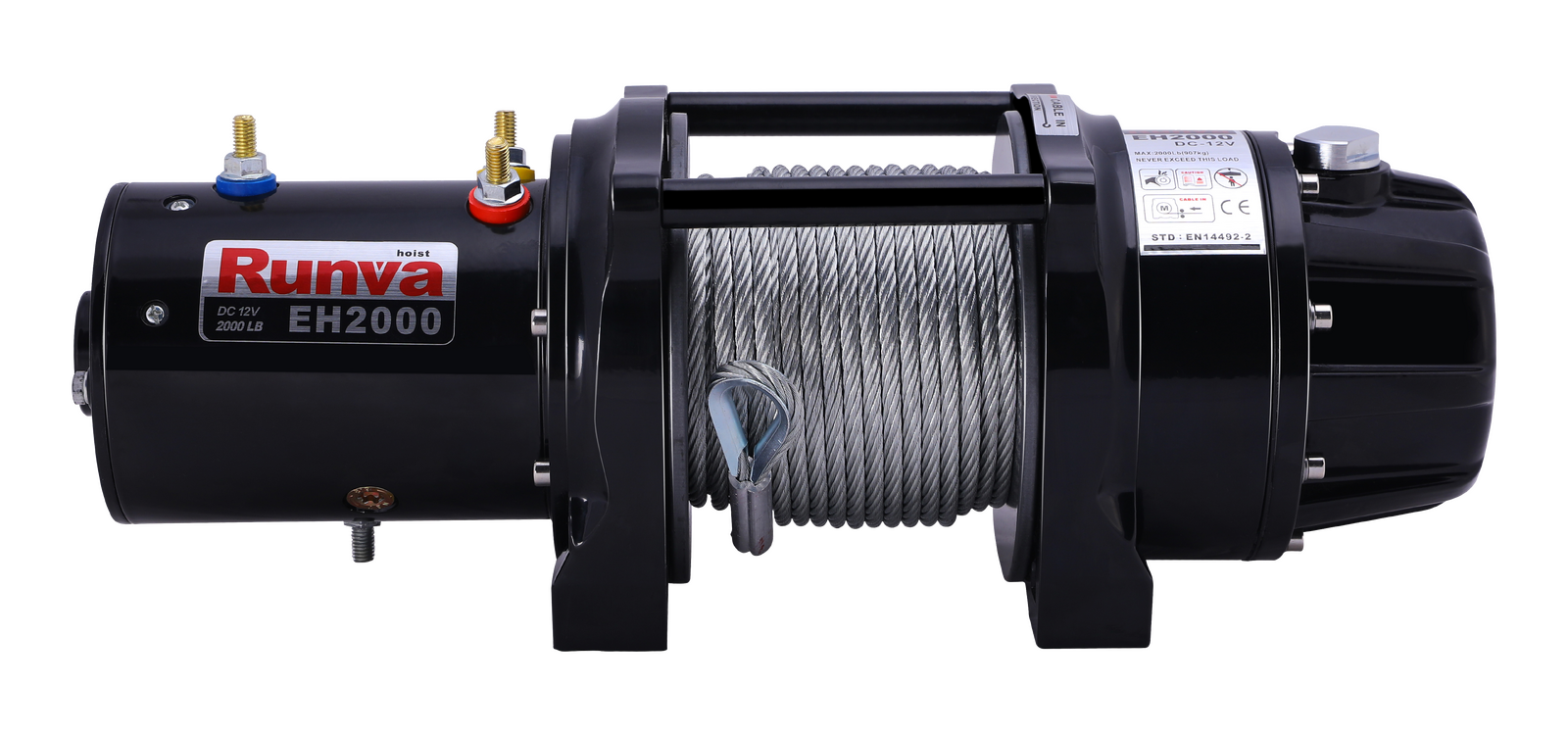

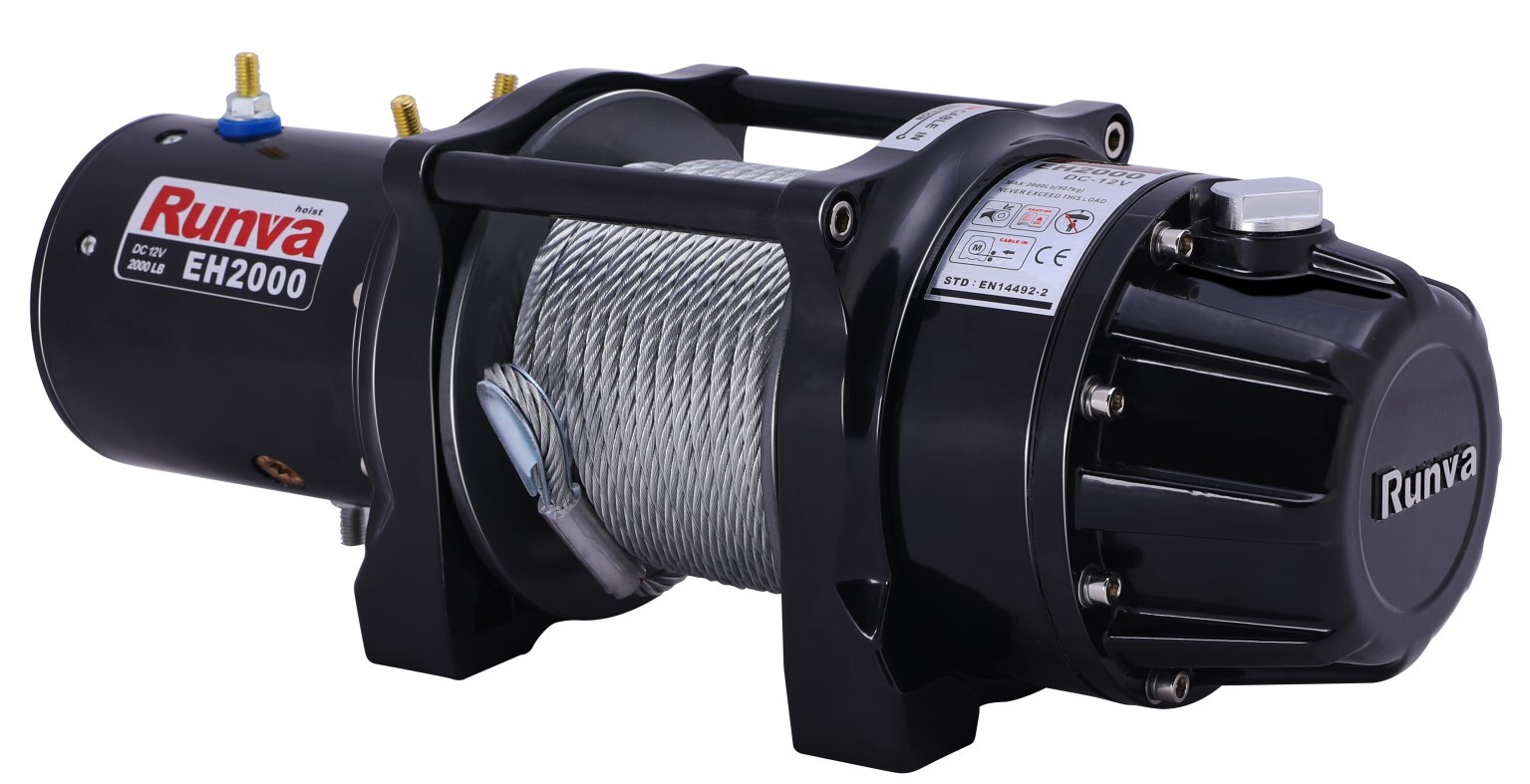

The Runva EH2000 Premium is our solution for any lifting applications where a 12V or 24V winch is required. Featuring a rated lifting capacity of 2,000lb from the powerful and reliable 6.1HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest jobs. This winch is suitable for a wide variety of industries and applications.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching.
The lifting action is done via the included remote control. There is no manual clutch lever fitted to this winch for safety reasons.
|LIFT lb (kg)||LINE SPEED ft/min (m/min)||MOTOR CURRENT (amp)||LAYER OF CABLE||RATED LIFT lb (kg)||TOTAL ROPE ON DRUM ft (m)|
|12V DC||24V DC||12V DC||24V DC|
|0||42.0 (12.8)||44.3 (13.5)||75||60||1||2,000 (907)||16.4 (5.0)|
|500 (227)||25.6 (7.8)||34.1 (10.4)||85||70||2||1,776 (805)||35.1 (10.7)|
|1,000 (454)||23.6 (6.7)||26.6 (8.1)||100||80||3||1,597 (724)||47.6 (14.5)|
|1,200 (680)||22.0 (6.7)||23.0 (7.0)||120||95|
|2,000 (907)||17.1 (5.2)||19.7 (6.0)||150||110|
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
