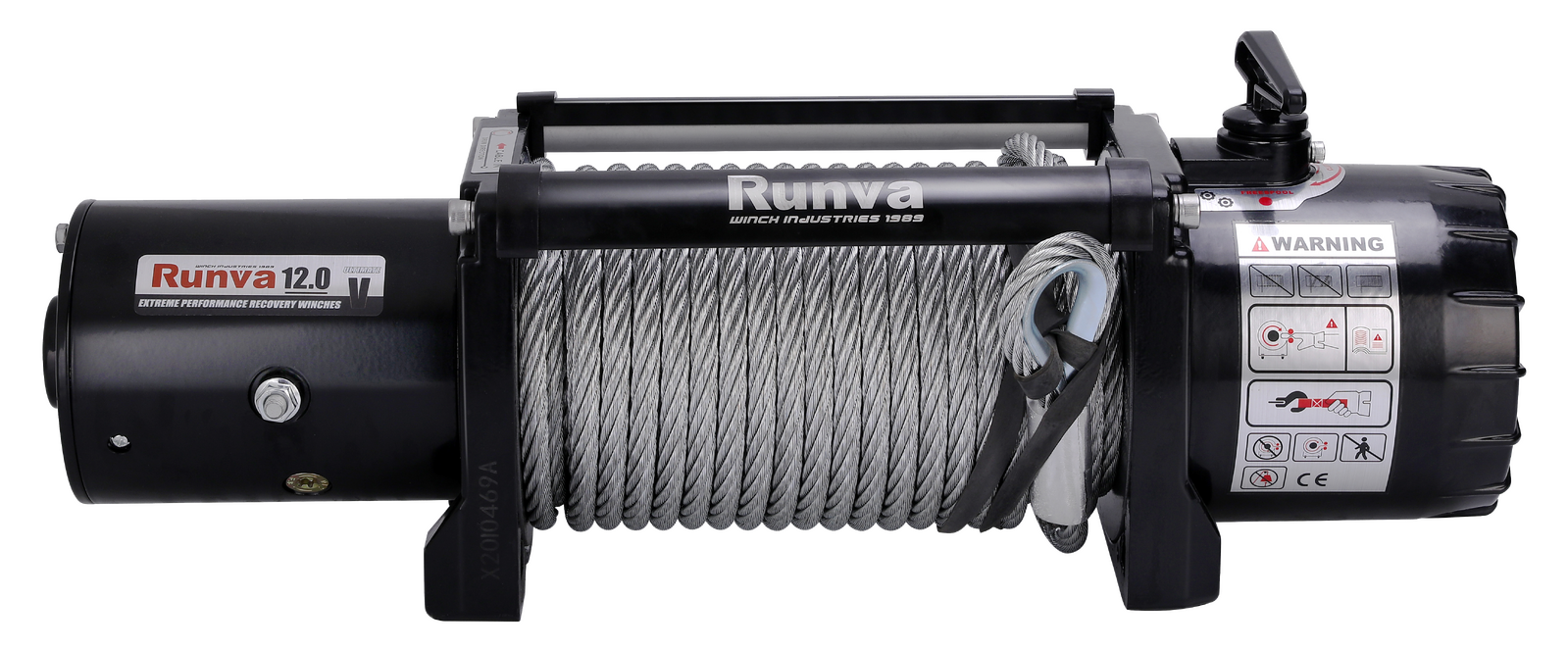

Runva EWV12000 ULTIMATE 24V with Steel Cable

$875.00


  • 12,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • RATCHET STYLE BRAKE IN GEARBOX
  • FITS ALL 4X4 WINCH BARS
  • SYNTHETIC ROPE OPTION AVAILABLE

The Runva EWV12000 Ultimate is the perfect option if you want a winch that is specifically rated to 12,000lb. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 12,000lb of line pull from the powerful and reliable 5.4HP motor. The gearbox is a three stage planetary setup with tough 253:1 gear ratio to handle even the toughest recoveries. This winch might be slower than some of our other models, but was designed to remain as compact and light as possible ensuring a perfect fit in any 4X4 Winch Bar/Bullbar available today.

Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.


If you need a strong winch but have limited space, look no further than the EWV12000 Ultimate.

RATED LINE PULL12,000LB (5,443KG)
MOTOR(12V) 4.0KW/5.4HP; (24V) 6.5KW/8.7HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO253:1
CLUTCH TYPESLIDING RING GEAR
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMAUTOMATIC RATCHET LOAD HOLDING IN THE GEARBOX
CABLE TYPEAIRCRAFT GRADE STEEL CABLE
CABLE SIZESTEEL CABLE: 11MM X 25M
DRUM SIZE63MM X 223MM
MOUNTING BOLT PATTERN254MM x 114.3MM
OVERALL DIMENSIONS553MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
sku EWV1200024VS
Shipping Weight 42.00kg
Shipping Width 0.630m
Shipping Height 0.330m
Shipping Length 0.330m
dimensions
LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT amp LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
  12V DC 24V DC 12V DC 24V DC
0 29.5 (9.0) 36 (11.0) 60 45 1 12,000 (5,443) 16.1 (4.9)
3,000 (1,361) 13.1 (4.0) 14.8 (4.5) 150 90 2 9,563 (4,338) 36.4 (11.1)
5,000 (2,268) 11.5 (3.5) 12.5 (3.8) 200 120 3 7,948 (3,605) 60.0 (18.3)
9,000 (4,082) 6.2 (1.9) 9.5 (2.9) 310 190 4 6,800 (3,084) 83.7 (25.0)
12,000 (5,443) 4.9 (1.5) 7.9 (2.4) 380 250

(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
