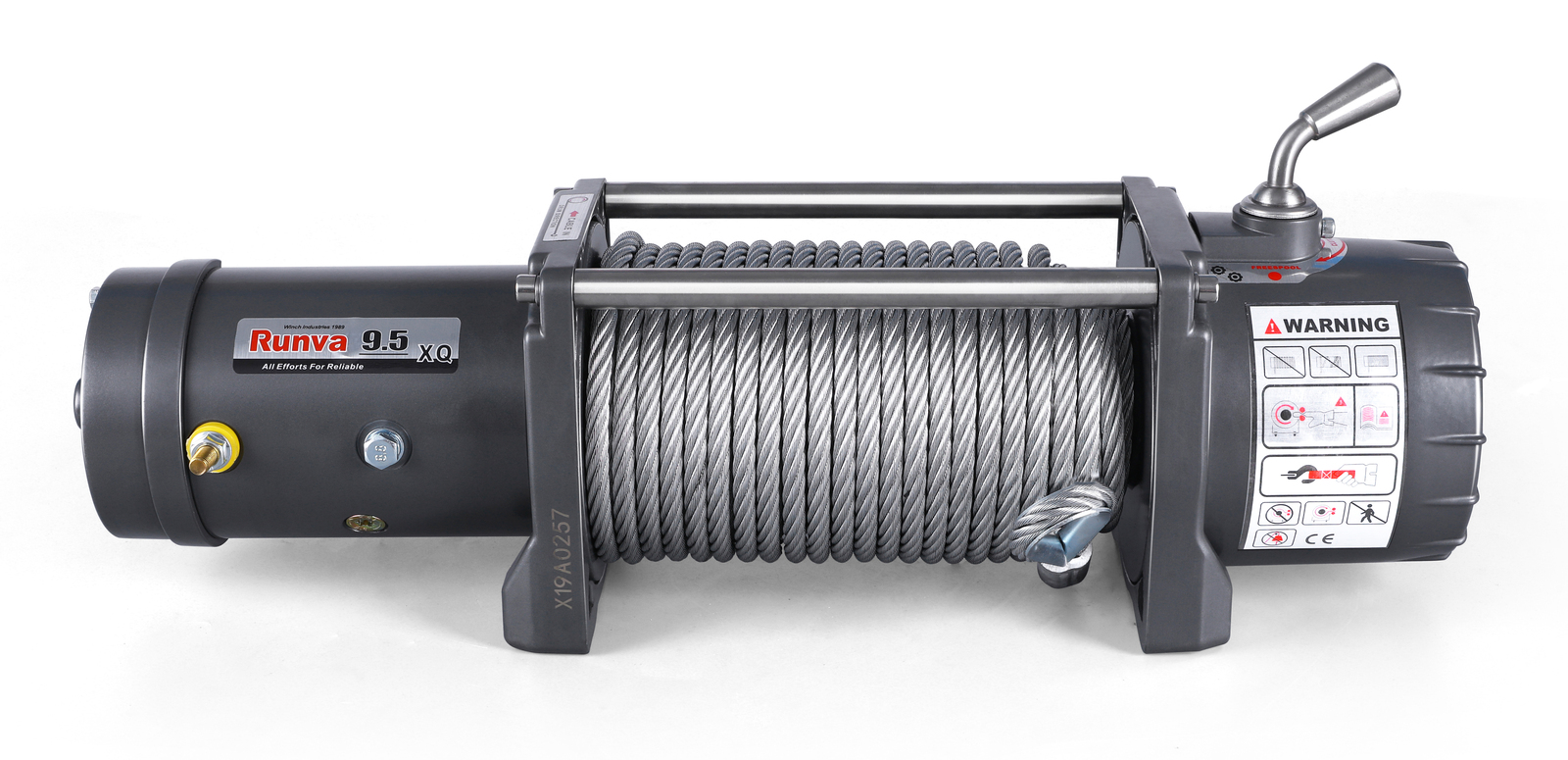

Runva EWX9500-Q 24V with Steel Cable
SKU
EWX9500-Q-24VS
Out of stock
AUD$733.00
Product overview
The Runva EWX9500-Q is ideal if you are needing faster line speed for a small to medium sized vehicle (or other applicaion). With 9,500lb of line pull, this winch is designed for fast line speed thanks to the large 8.6HP motor and low 110:1 gear ratio.

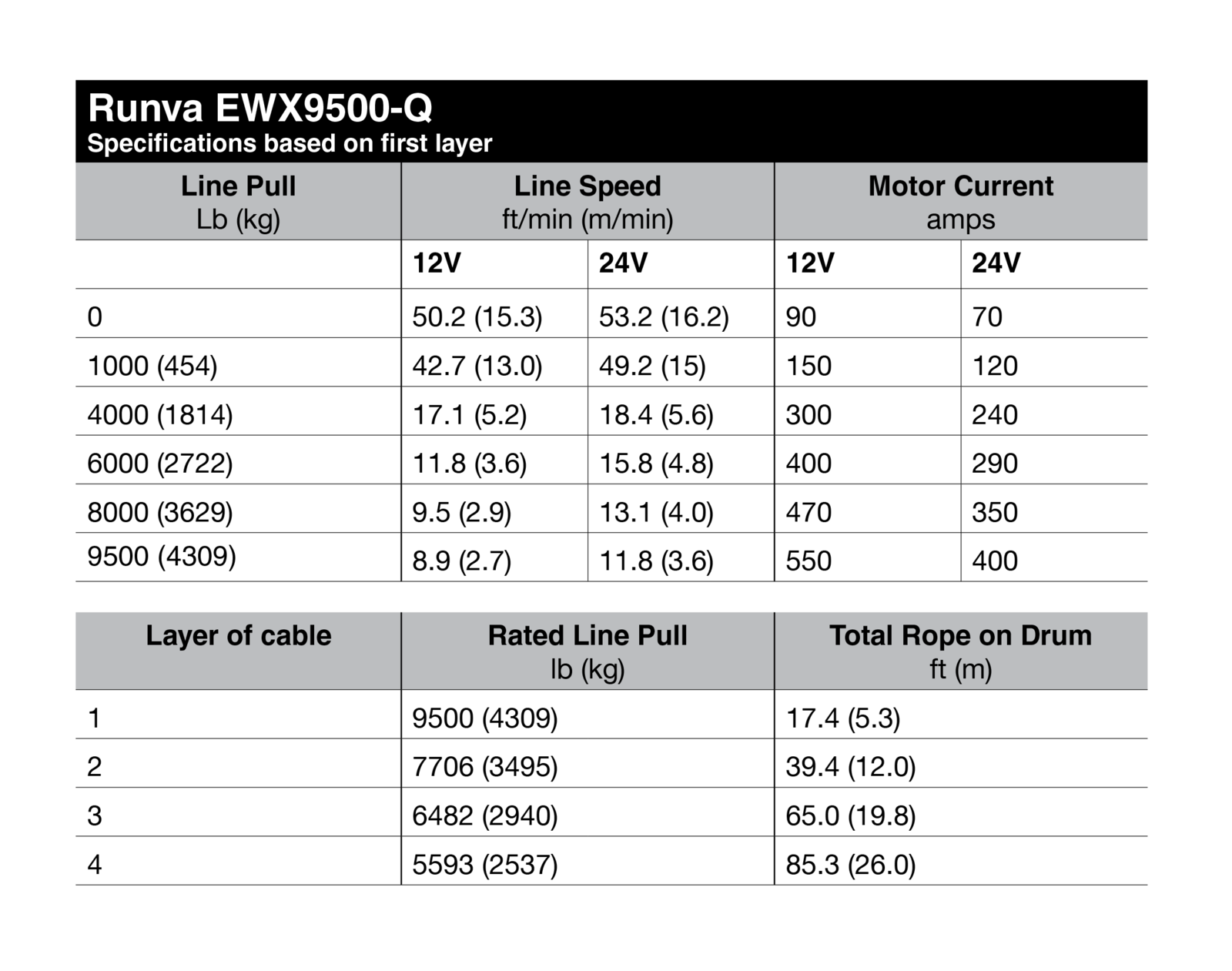

Tech Specs
RATED LINE PULL 9,500LB (4,309KG)
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 110:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 63MM X 216MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 612MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU EWB9500X24VS
SHIPPING WEIGHT 39.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M
